1mm position measurement system
Features:
Positioning accuracy: ± (20μm * L) L: Location foot length Signal Resolution: Analog: 1mm; digital: 1μm Reproduce degree: Analog: ± 3μm; digital: ± 2μm Reference Point Signal: 1Pulse/1mm Output Signal: Analog: SIN / COS 1Vpp
Digital: 5V/RS422/TTL
24V PP
Protection class: read head: IP67
 |
||
 |
 Position feet 1mm
 Filling the position of ruler of magnetic technology from Germany, the precision of the system with a variety of magnetization measurements used in conjunction to achieve a variety of
Detection accuracy requirements.
In particular, the system uses magnetic principles, therefore, affect the ruler of oil from harsh working environment, water, chips, etc., can also reach To the system requirements of accuracy. |
|
 |
T-Positioning Measurement The location of the measurement device is compact design, easy for small machines and machines need to save space position measurement and feedback to make
With.
The position measuring device designed to be simple, easy to install and easy to switch between, to avoid resonance generated by high-speed mobile. The use of plug-in installed, install each direction can be fast and accurate installation. Uses unibody enclosure, waterproof, dustproof. Customers can correspond analog or digital signals for display or use position feedback. |
|
 |
Upright position measuring device Location and return measurements and measurements of the tower is designed as a compact, convenient for small machines and machines need to save space in the
Feed-use.
The shell is made open molding, assembly, high precision, high quality and reliability. Increase the metal casing, use in harsh environments |
|
 |
PG type position measurement device This measurement device is suitable for automatic operation of the machine equipment on rails and other required gear ... and the need to use precise position when measured quantity. This measurement device with HIWIN rail design and production, cheap and highly reliable, easy to install and can improve efficiency The amount of feedback and obtain high-precision measurement and location. |
|
 |
Standard Positioning Measurement The standard position measurement device, designed to be simple, easy to install, easy to switch between. The use of plug-in installed, install each direction can be fast and accurate installation. Uses unibody enclosure, waterproof, dustproof. Can be applied metal casing to prevent cuts and cutting chips signal line of thermal damage and other damage caused by the signal line. Customers can correspond analog or digital signals for display or use position |
|
 |

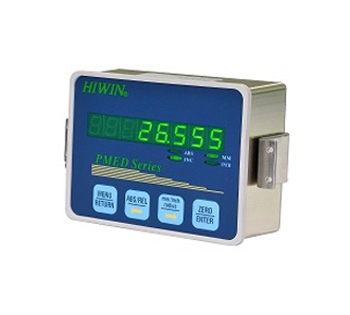

High-performance single-axis display
The display uses LED display design, high brightness, high reliability. This monitor can be used with other optical scale with the use of digital signals. This display contains four sets of Relay outputs meet the needs of industrial use associated with automatic cutting machines, woodworking machines, etc.. Group 8 preset memories are often used without the complicated settings. This monitor has a small size, easy installation features. |
|
