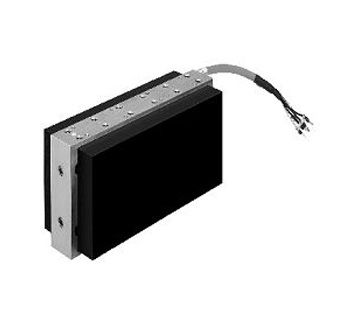

HIWIN LMSC synchronous linear motor for the core motor, and the LMS series have the same characteristics, but there are about two times more thrust. Due to the special arrangement of the mover between the two stator, stator attraction between action will offset each other. Therefore significantly reduce the load on the rail, in a very small volume can reach a very high thrust density.
 Large thrust constant
 Can be cooled
Magnetic forces are offset
Magnetic force generated by the slide rails from the preload
The same motion axis can install multiple mover
Travel Unlimited
|
