HIWIN synchronous linear motor linear drive LMS is part of a larger thrust product type. Its feature is the large thrust.

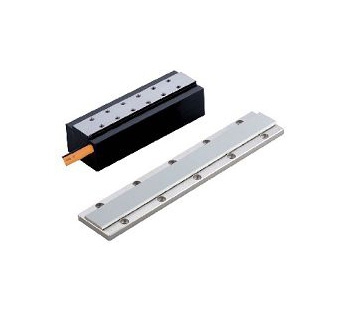

This is a three-phase motor side (mover) constituted by a core on the secondary side of the permanent magnets (stator) components. Since the stator can be extended indefinitely, so the trip will be unrestricted.
 Three-phase
 Thrust
High acceleration
Low Dunli
Unrestricted travel
The same motion axis can install multiple mover
|
