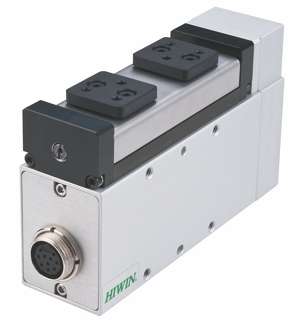

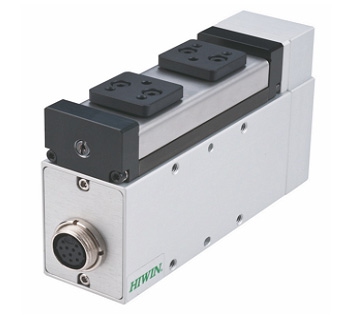

XEG Electric jaws

Electric Gripper

Feature

Full range of stepper motors with encoders drive
Use ground-level single-axis robot ball screw drive
Realize the advantages of high speed, high precision, high rigidity, high efficiency and small size of the
Clamping position, strength, speed, acceleration and deceleration can be set

Products


XEG-16	XEG-32	XEG-64

Model	Both sides of the trip (mm)	Clamping force (N)	Repeat positioning accuracy (mm)	Speed (mm/s)	Weight (kg)
XEG-16	16	25~50	±0.01	1~60	0.4
XEG-32	32	60~150	±0.01	1~80	0.7
XEG-64	64	180~450	±0.01	1~100	1.9

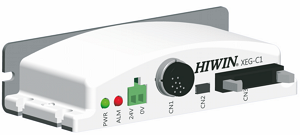

XEG-C1

Drive Model	Supply Voltage (V)	Current consumption (A)	Weight (kg)
XEG-C1	DC24V±10%	3A MAX	0.14
