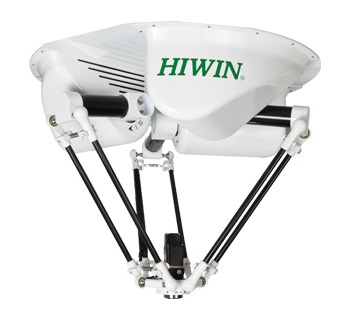

RD401 parallel robot

RD401

  • 推到Facebook
  • 推到Plurk
  • 推到Twitter

Feature
Using parallel link mechanism, a larger scope of work and high-speed capability, and have a stable sports performance, the shortest period of time with high accuracy.
Apply in precision pick and place operations, assembly, and packaging the entire column.

Products



DOF 4
Rated load 1 kg

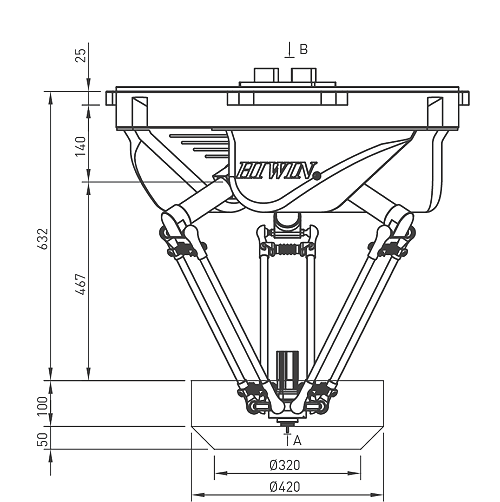

Range of motion Actuator diameter 420 mm
Actuator diameter 150mm
Repeatability ±0.05mm
Cycle time 0.3s
Weight
(kg)
80kg
Controller RCD4
Installation 吊掛式

* Cycle time and from a vertical height of 25mm, the time required for a horizontal distance of 300mm, the actual application will vary depending on operating conditions and restrictions.
