Oscillator input
Oscillator input
|
Model |
S/B 2030-28/40/100-12 |
S/B 3040-28/40/100-18 |
S/B 4050-28/40/100-24 |
|
Transducers of Element |
12 |
18 |
24 |
|
Frequency |
28/40/100 KHz |
28/40/100 KHz |
28/40/100 KHz |
|
Working Dimension |
200 x 300 x 100 (mm) |
300 x 400 x 100 (mm) |
400 x 500 x 100 (mm) |

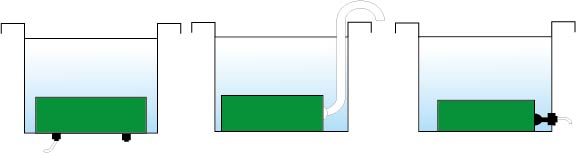

| Standard | Select with |
| B: Bottom Mount: Wire Export screws from the bottom | SUS 304，316，2.5t，3.0tmm |
| S: side Suspension type: the SUS Teflon hose covered | Oscillation plated plated surface treatment |
| Export screws | Vibrations from the change of the sub-mount |
| 28,24,100 KHz tone | Each oscillator design can be 300 ~ 2400W |
| SUS 304/316 2t m / m | Transformers: 110V, 220V, 380V, 460V, and other specifications |
 |
