LAK
LAK series controller to drive the actuator important interface, the main function is to provide power and to control the movement trajectories caused by the required actuators, speed and positioning medical equipment and so on ... all DC linear actuator, so the controller needs rechargeable batteries have a charging function and or the need to provide a transformer and rectifying function DC power required for the actuator.
 |

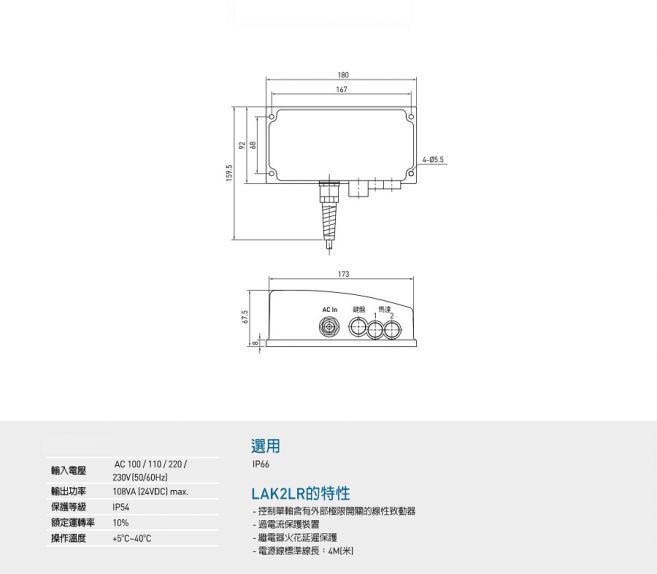

 LAK2LR Single-axis linear control with external limit switch actuator Overcurrent protective device Relays spark delay protection |
 |

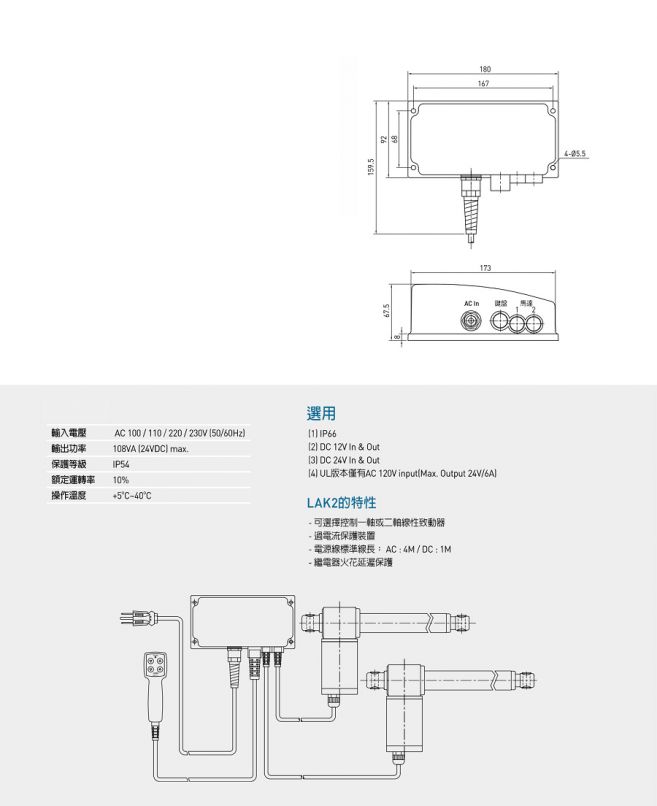

LAK2 Optional control an axis or two-axis linear actuator Overcurrent protective device
Relays spark delay protection |
 |
LAK2BN Optional control an axis or two-axis linear actuator relay spark delay protection Overcurrent protective device Slow start function Rechargeable Battery Function Automatic low battery alarm function Battery capacity 1.3Ah (12VDCx2) Battery (Optional: 2.9Ah, 12VDCx2) |
 |

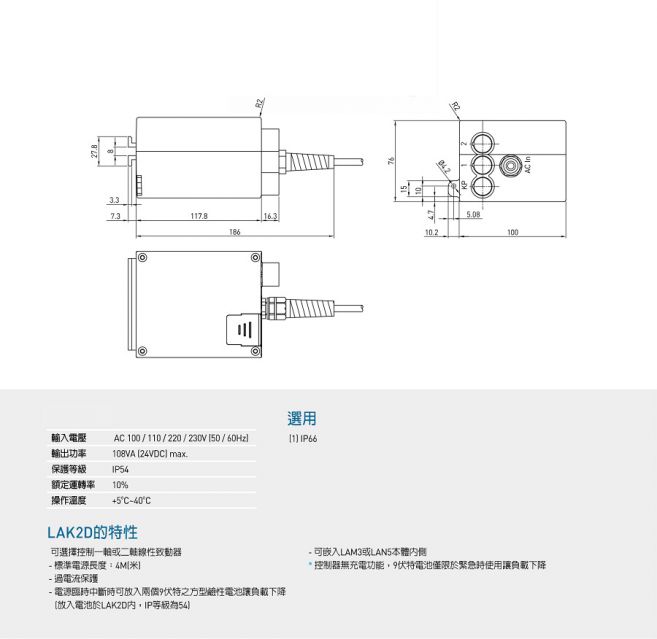

LAK2D Optional control an axis or two-axis linear actuator Overcurrent protective device Power can be placed in a temporary interruption of the square two 9-volt alkaline battery allows the load fall (Insert the batteries in the LAK2D, IP rating of 54) Can be embedded inside the body LAM3 or LAN5 |
 |

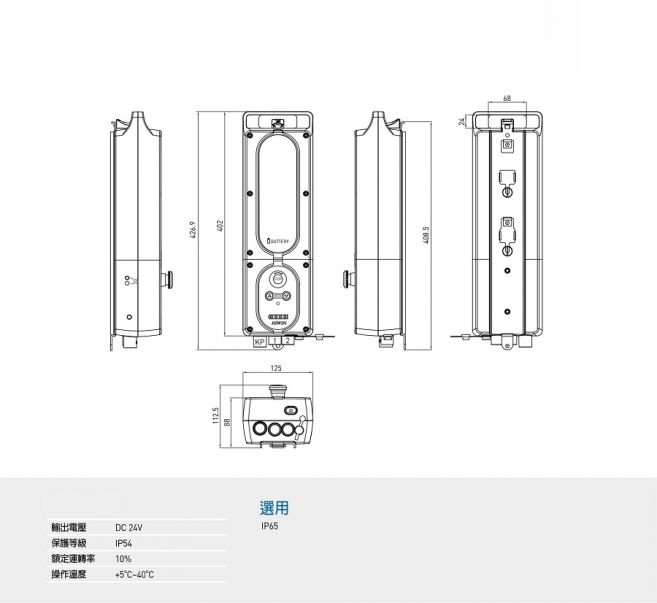

LAK2J Portable design (battery powered) Emergency stop switch Optional control an axis or two-axis linear actuator overcurrent protective device Emergency operator control panel LED panel light battery capacity display Slow start / stop function When charging the battery via LAKCH charger (LAK2J-11) Automatic low battery alarm function Battery capacity 4.5Ah (12VDCx2) |
 |

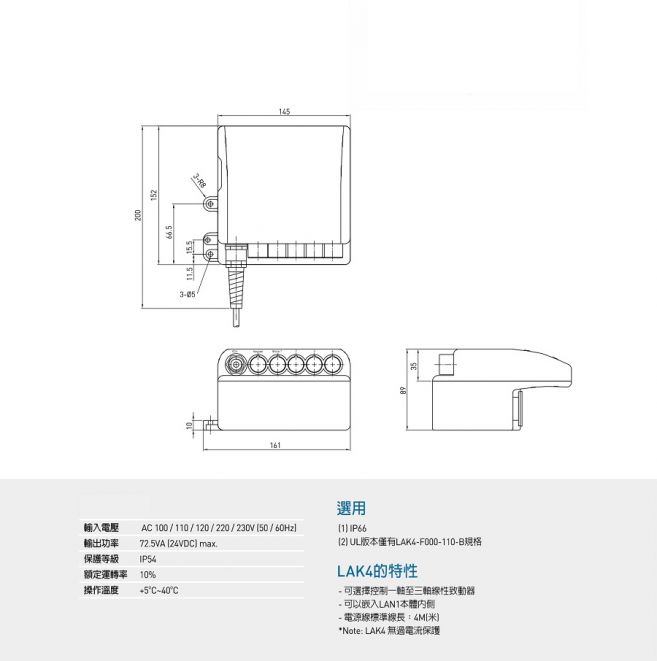

LAK4 Control 1 three-axis linear actuator LAN1 can be embedded inside the body No overcurrent protection |
 |

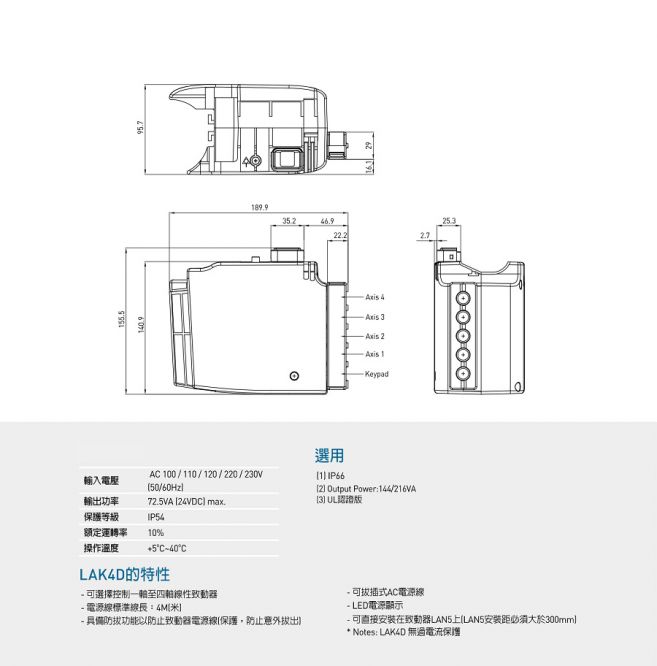

LAK4D Control 1 four-axis linear actuator With anti-pull actuator function to prevent the power cord (protection against accidental unplugging) Pluggable AC power cord LED power display Can be directly mounted on the actuator LAN5 (LAN5 mounting distance must be greater than 300mm) No overcurrent protection |
 |

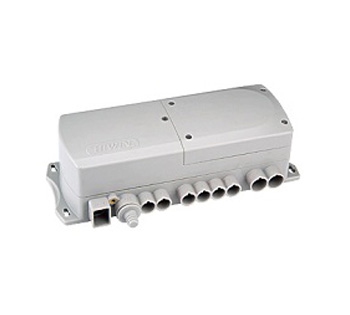

LAK6B Choose one to six-axis control actuator relay spark delay protection Slow start function overcurrent protection Removable battery recharge features automatic power saving device Automatic low battery alarm function Battery capacity 1.3 Ah (12VDCx2) Removable fuse spare fuse attached to the removable seat With external grounding LED power display |
 |

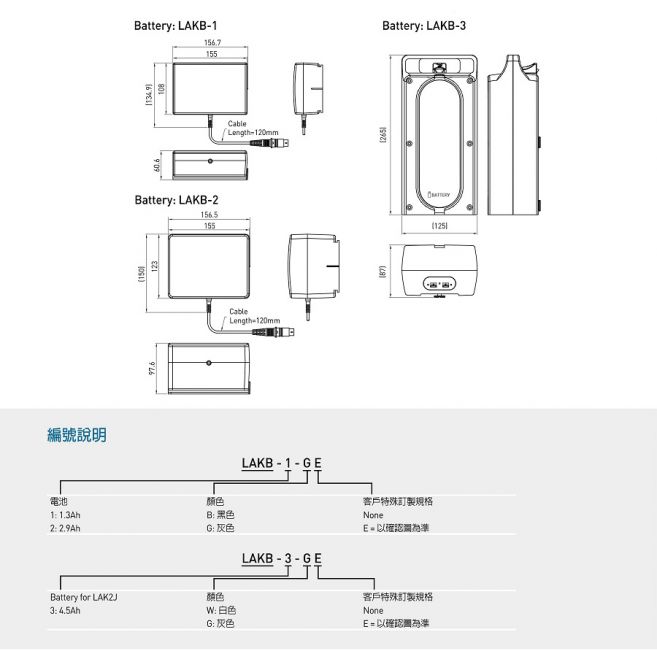

LAKB Battery Box Category:
(1) LAKB-1 (1.3Ah) can be directly installed in the controller LAK2BN
(2) LAKB-2 (2.9Ah) can be directly installed in the controller LAK2BN
(3) LAKB-3 (4.5Ah) can be directly installed in the controller LAK2J
|
 |

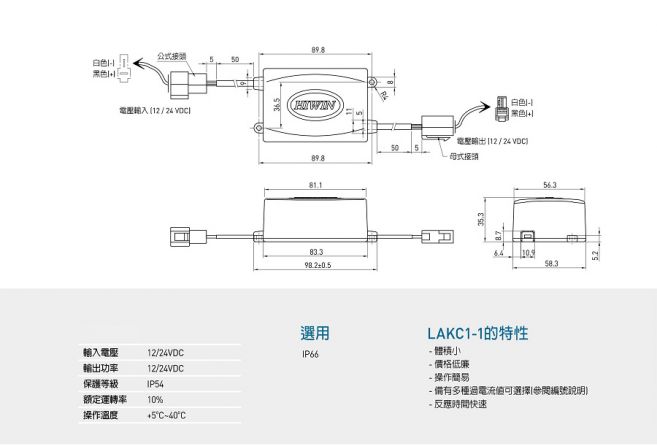

LAKC1-1 Small Easy operation Selectable over a wide range of current values (see No.Description) Fast response time |
