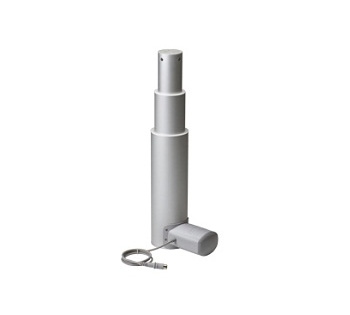

LAC
LAC series of simple cylindrical design of the actuator design exceptionally three sections, middle and inner tubes, specifically for medical bed, chair, couch, dentist chairs designed three-stage lifting column can also be installed in the home TV cabinets, office lift tables ... etc; smooth, quiet lifting function of the realization of the demand for activation.
| Is a smooth, quiet actuator can be installed to obtain a single column or two columns on the rack can be synchronized to do movements, the control system program to compensate by making the problem of uneven countertop installed parallel stable drive. | |
 |
 LAC1
LAC1 actuator screw type is ACME, the appearance of simple design elements with cylindrical, containing micro limit switches, or may choose magnetic inductive position feedback device.
 Maximum thrust: 2000N Maximum tension: 500N Maximum speed: 16 mm / s |
 |

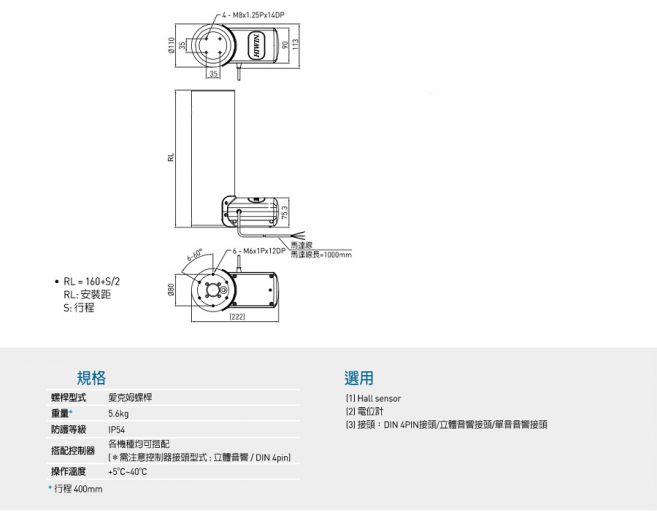

LAC3
LAC3 actuator screw type is ACME, the appearance of simple cylindrical tube with a triangular design element, containing micro limit switches, or may choose magnetic inductive position feedback device.
CE certification:
Appliances: EN 60335
Medical category: EN 60601
Maximum thrust: 2000N Maximum tension: 500N Maximum speed: 12 mm / s |
