5mm position measurement system
|
Features:
 Positioning accuracy: ± (80μm +15 μm / m * L) L: Location foot length Signal Resolution: Analog: 5mm; digital: 5μm Reproduce degree: Analog: ± 15μm; digital: ± 10μm Reference Point Signal: 1Pulse/1mm Output Signal: Analog: SIN / COS 1Vpp
Digital: 5V/RS422/TTL
24V PP
Protection class: read head: IP67
IP43
|
||
 |
||
 |
 5mm foot position  Filling the position of ruler of magnetic technology from Germany, the precision of the system with a variety of magnetization measurements used in conjunction to achieve a variety of
Detection accuracy requirements.
In particular, the system uses magnetic principles, therefore, affect the ruler of oil from harsh working environment, water, chips, etc., can also reach To the system requirements of accuracy. |
|
 |
Upright position measuring device The upright position of the measurement device is compact design, convenient in location requires a small amount of machines and space-saving machine of measurement and
Use feedback.
The shell is made open molding, assembly, high precision, high quality and reliability. ncrease the metal casing and includes brush holder, for use in harsh environments. The output signal can be divided into 5V RS422/TTL and push-pull output, can be used with PC and PLC do precisely the position |
|
 |
E-type position measurement device The E-type measuring device is compact design, easy for small machines and require space-saving machine of position measurement and feedback to make
With.
The shell is made open molding, assembly, high precision, high quality and reliability. Uses unibody enclosure, waterproof, dustproof, grade can to IP67. |
|
 |
H-position measuring device This measurement is suitable for automatic machines for the device on the rail when the action of the ... position measurement using precision required and must drive and so on. This measurement device with HIWIN rail design and production, cheap and high reliability, easy to install, can improve efficiency The amount of feedback and obtain high-precision measurement and location. |
|
 |
5mm signal converter The signal converter can be used with analog signals are converted to digital signal output, making precise measurements of the converted signal by the signal,
To achieve precise position feedback and the correct position display.
The signal converter output signal can be divided into 5V RS422/TTL and open collector transistor outputs can do fine with a PC and PLC
Associate's position feedback.
The small signal converter is easy to install, suitable for installation in position measurement and feedback to make use of all types of machine equipment. |
|
 |

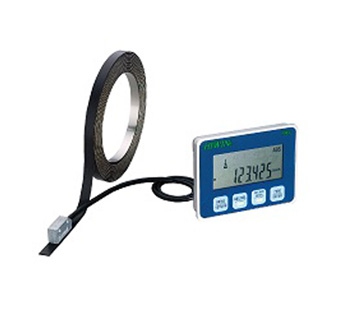

Linear Measurement System LCD Display The display uses LCD display designed to No. 3 battery can drive ordinary, long service life. And measurement devices is one design, ideal for use in a variety of cutting machines, woodworking machines, etc., and can often use the default The function of memory, the setting is not complicated.
Has a small, cheap, higher mobility characteristics.
|
|
 |
High-performance single-axis display The display uses LED display design, high brightness, high reliability. This monitor can be used with other optical scale with the use of digital signals. This display contains four sets of Relay outputs meet the needs of industrial use associated with automatic cutting machines, woodworking machines, etc.. Group 8 preset memories are often used without the complicated settings. This monitor has a small size, easy installation features. |
|
