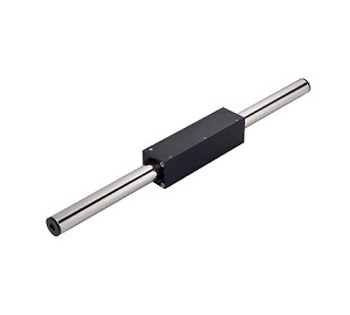

LMT linear rod motor
|
This series is HIWIN linear rod motor, simple mechanism and characteristics with rapid linear movement. The stator and the mover mining and closure of non-core type magnetic circuit can effectively concentrate the magnetic flux generated big thrust. Has a small inertia, high acceleration, no Dunli, easy to install, easy to maintain and easy to replace characteristics screw institutions.
 Easy to replace screw mechanism  Easy to install No Dunli The maximum speed of up to 5 m / s Suitable for high-grade dust-free environment Better repeatability (± 1um) |
 |

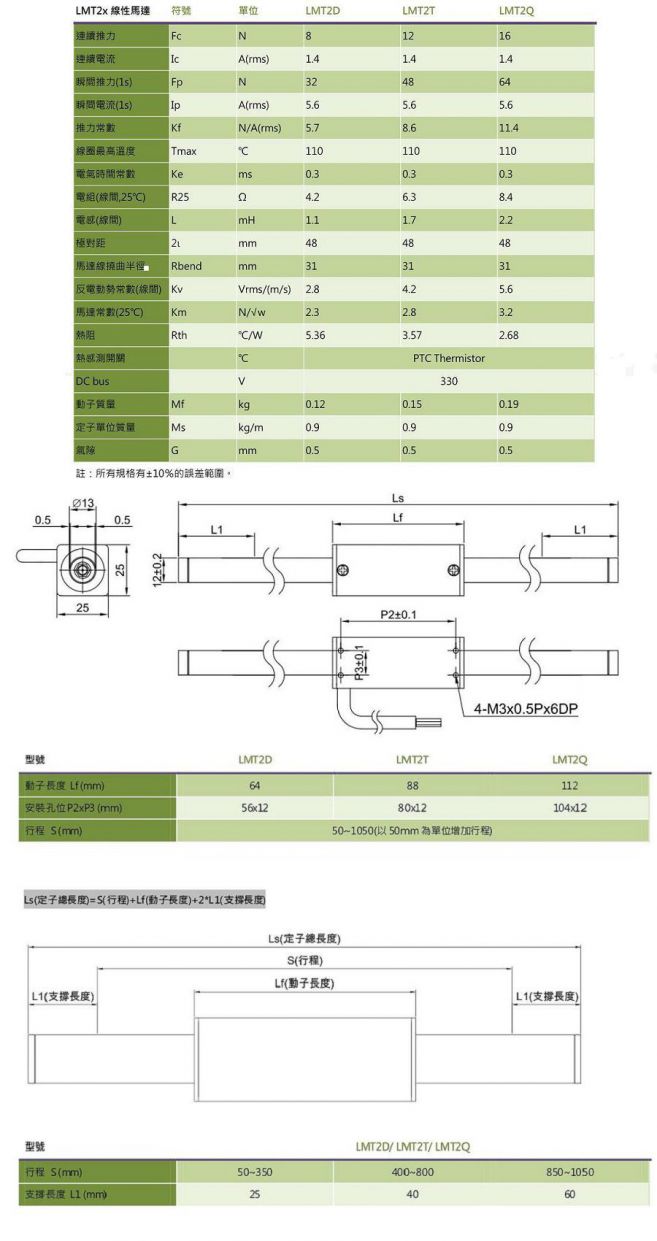

 LMT2  The maximum speed of up to 5 m/s Cross-sectional area 25mm X 25mm Instant thrust of up to 64N, 16N continuous thrust up Diverse applications |
 |

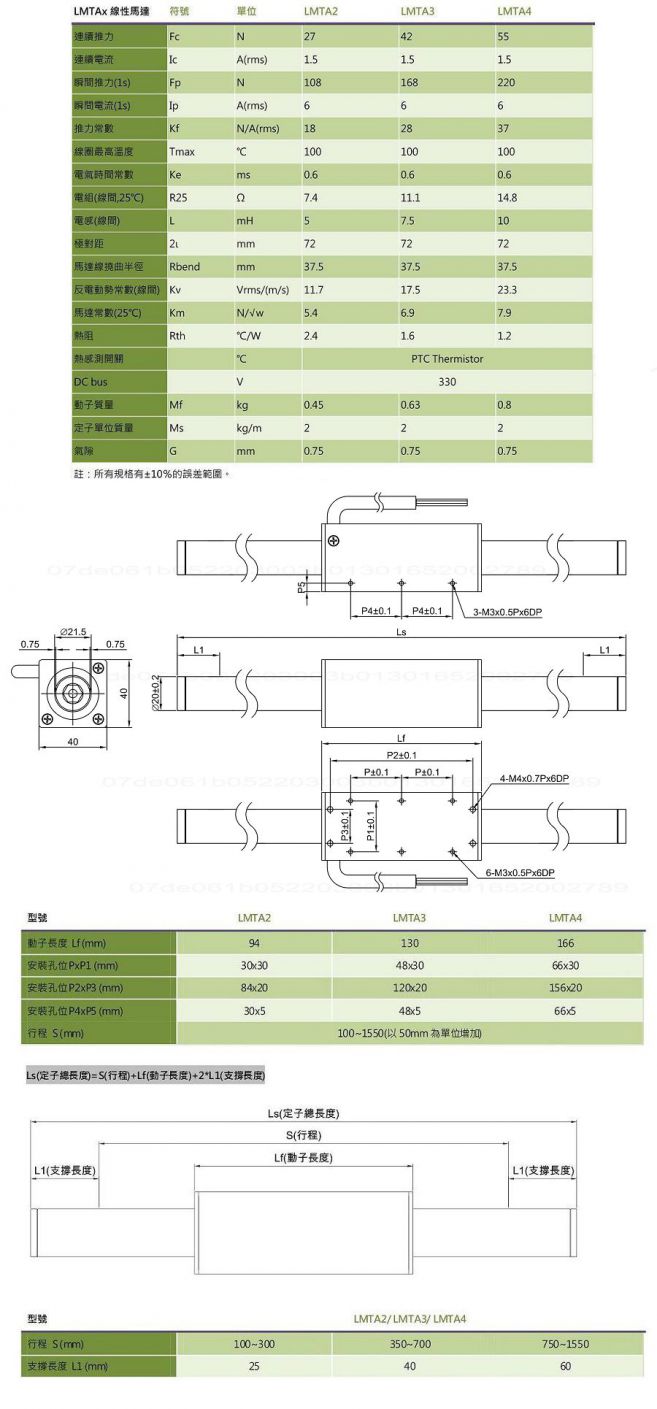

LMTA The maximum speed of up to 5 m/s Cross-sectional area 40mm X 40mm Instant thrust of up to 220N, continuous thrust of up to 55N Diverse applications |
 |

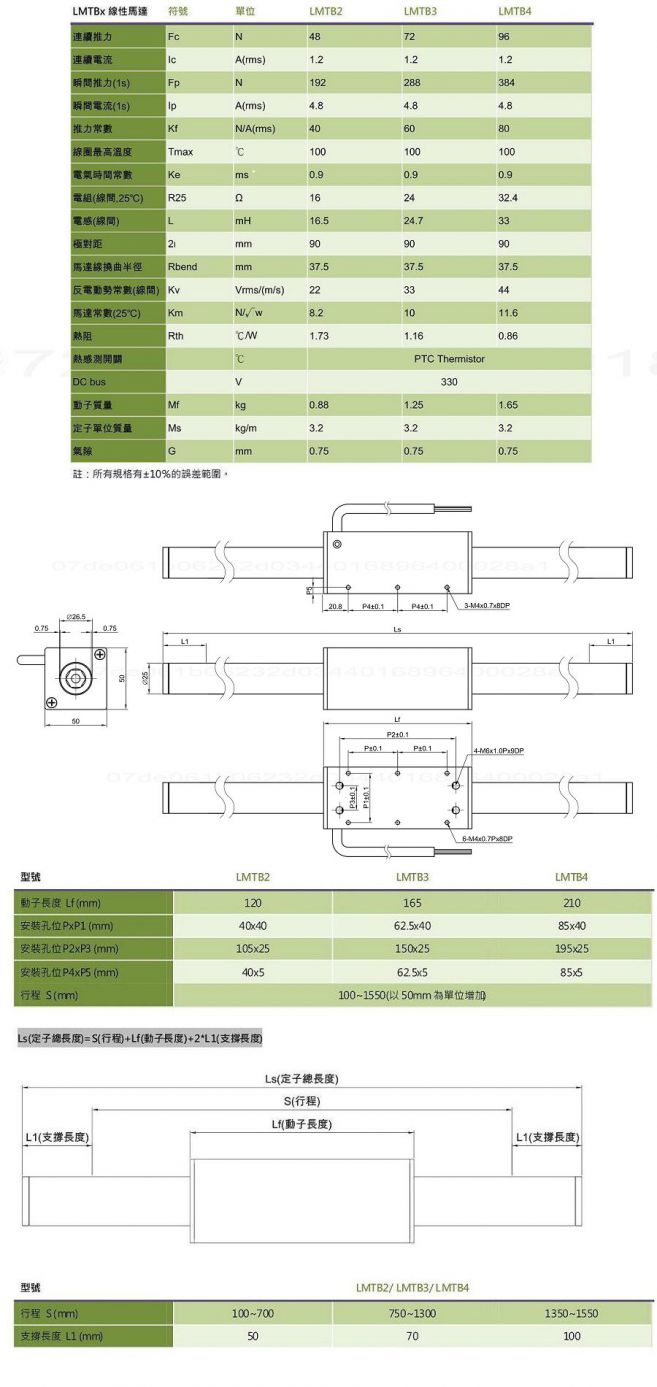

LMTB The maximum speed of up to 5 m/s Cross-sectional area 50mm X 50mm Instant thrust of up to 384N, continuous thrust of up to 96N Diverse applications |
 |

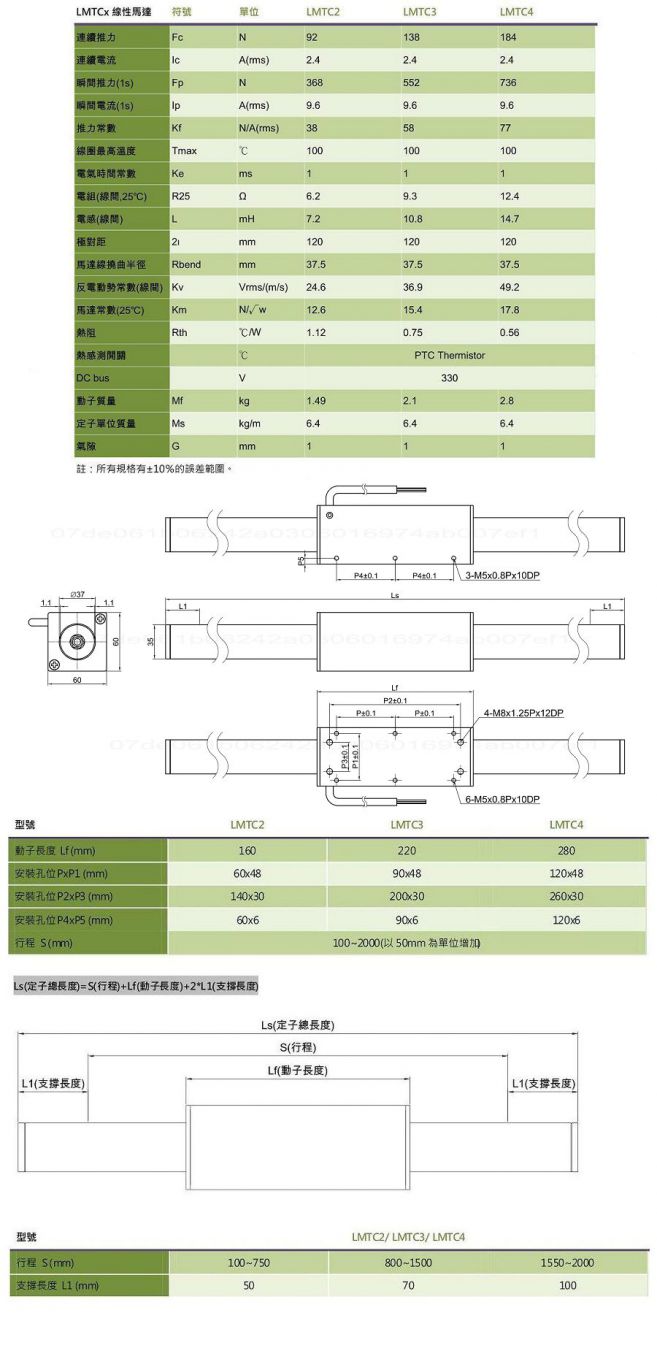

LMTC The maximum speed of up to 5 m/s Cross-sectional area 60mm X 60mm Instant thrust of up to 736N, 184N continuous thrust up Diverse applications |
 |

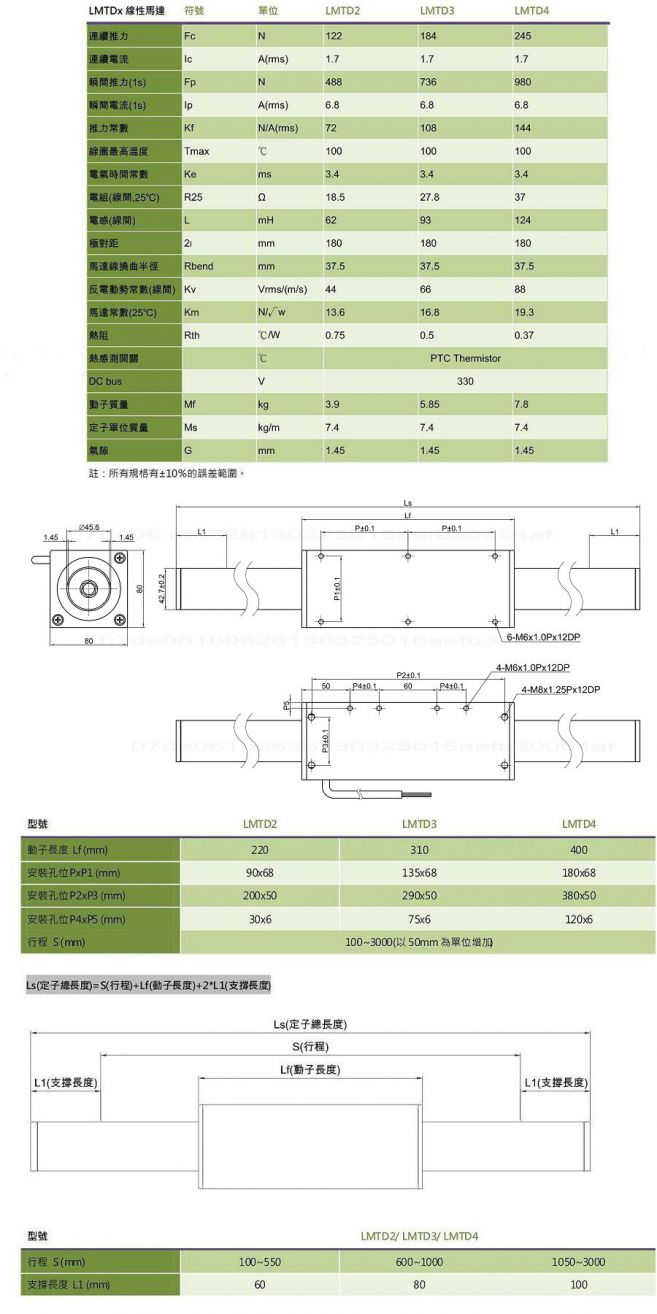

LMTD The maximum speed of up to 5 m/s Maximum acceleration up 50 m/s2 Cross-sectional area 80mm X 80mm Instant thrust of up to 980N, 245N continuous thrust up Diverse applications |
