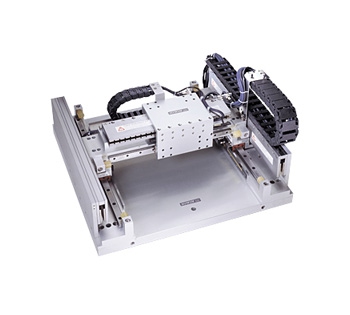

LMG2A gantry system
|
HIWIN linear motor using the linear motor directly drives the platform, and are designed to be easily replaced. Optional standard chain with customized trough. Each axis linear motor platform equipped with position feedback system, linear rails, limit switches with optional top cover to protect against impact from the environment. The brakes are optional quota system. Because direct drive, so the platform is almost no backlash, and has a high dynamic characteristics, easy maintenance, and can be equipped with a plurality of the mover. |
|
|
LMG2 series of standardized systems for unilateral gantry drive system
LMG2A-S: using core linear motor|
Characteristics / LMG2A-C:
* The use of coreless linear motor
* Low inertia and high acceleration
* No Dunli
* High rigidity aluminum bridge architecture
* Simple assembly
|
Characteristics/ LMG2A-S:
* The use of core linear motor
* Large thrust and high acceleration
* Low Dayton force, speed and stability.
* High rigidity aluminum bridge architecture
|
