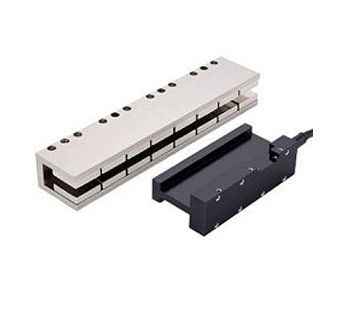

LMX1E-C coreless
|
This series is HIWIN coreless synchronous linear motor, light, and has excellent dynamic characteristics. Because there is no core mover, special encapsulated coil, so the burden of movement just by itself weight. Has a small inertia, high acceleration, no Dunli, installation, small size, and high-speed characteristics of excellent coordination of sync.
 The maximum speed of 5 m / s  Maximum acceleration 50 m / s2 High thrust density No Dayton force, no magnetic force |
 |

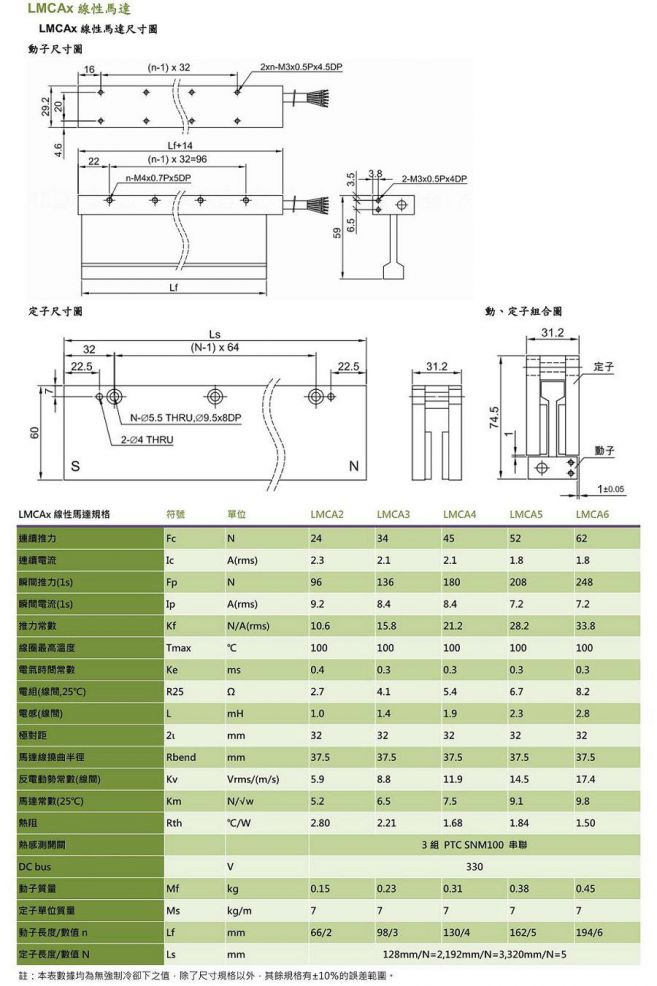

 LMCA  The maximum speed of up to 5 m/s Maximum acceleration up 50 m/s2 Cross-sectional area 74.5mm X 31.2mm Instant thrust of up to 248N, continuous thrust of up to 62N The industrial demand for high-precision |
|
 |

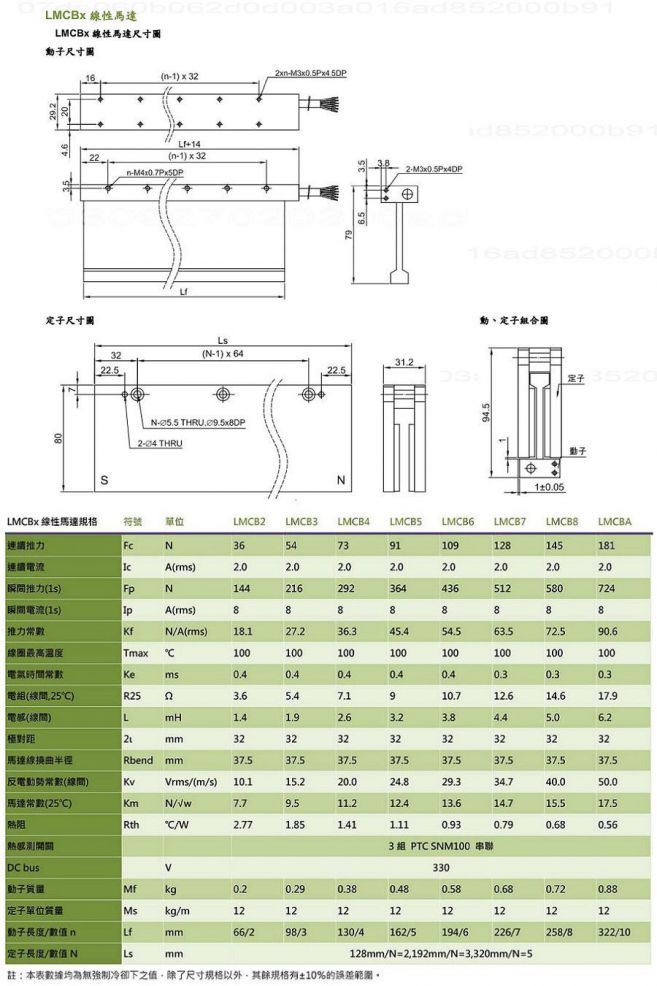

LMCB The maximum speed of up to 5 m/s Maximum acceleration up 50 m/s2 Cross-sectional area 94.5mm X 31.2mm Instant thrust of up to 724N, 181N continuous thrust up The industrial demand for high-precision |
|
 |

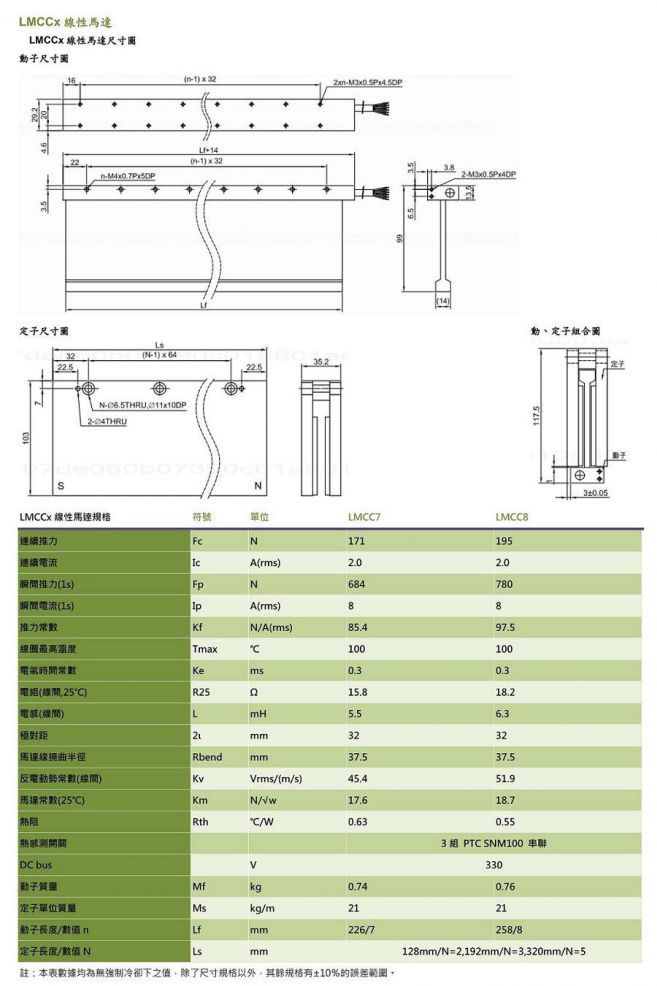

LMCC The maximum speed of up to 5 m/sMaximum acceleration up 50 m/s2 Cross-sectional area 117.5mm X 35.2mm Instant thrust of up to 780N, 195N continuous thrust up The industrial demand for high-precision |
|
 |

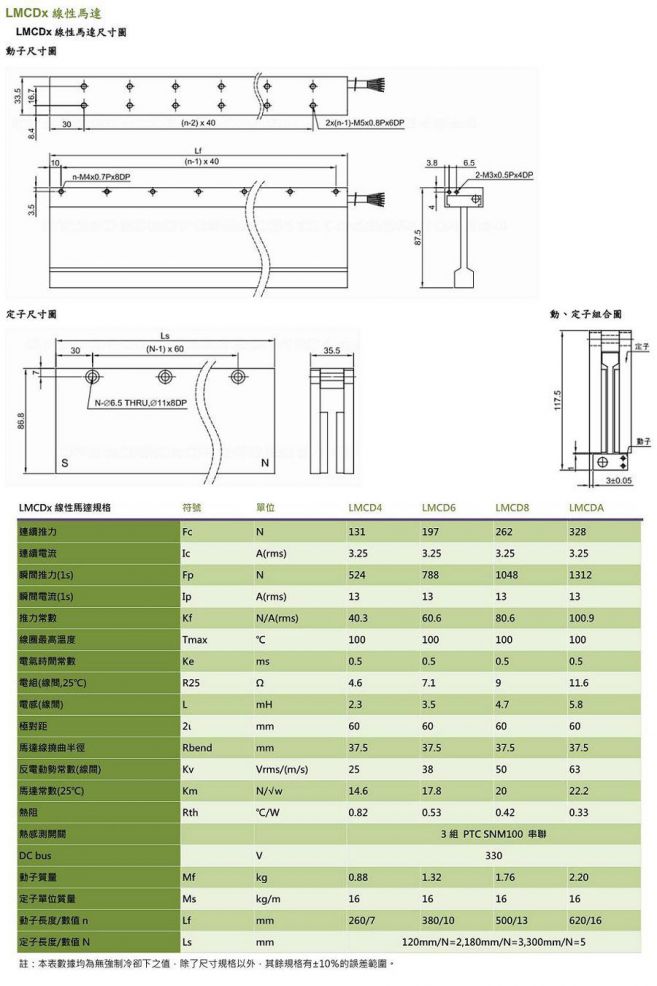

LMCD The maximum speed of up to 5 m/s Maximum acceleration up 50 m/s2 截面積105mm X 35.5mm Instant thrust of up to 1312N, continuous thrust of up to 328N The industrial demand for high-precision |
|
 |

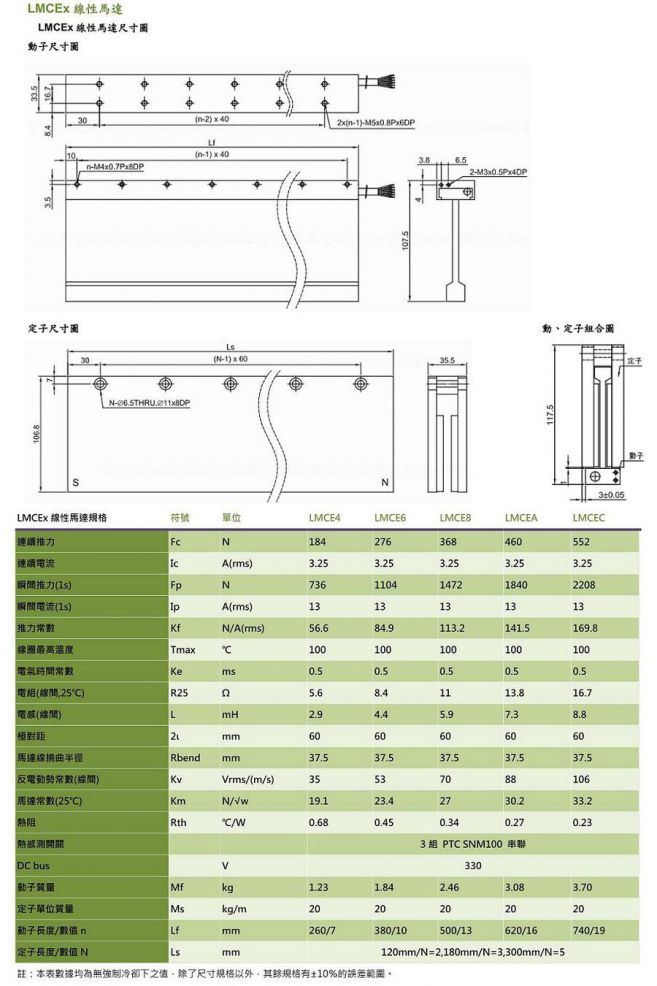

LMCE The maximum speed of up to 5 m/s Maximum acceleration up 50 m/s2 Cross-sectional area 125mm X 35.5mm Instant thrust of up to 2208N, continuous thrust of up to 552N The industrial demand for high-precision |
|
 |

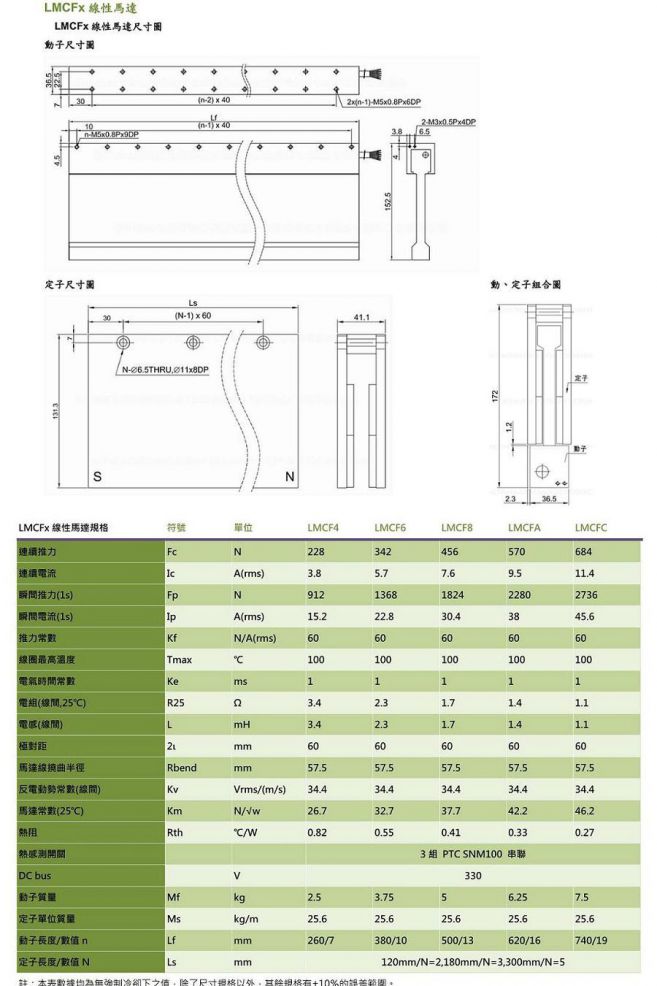

LMCF The maximum speed of up to 5 m/s Maximum acceleration up 50 m/s2 Cross-sectional area 172mm X 41.1mm Instant thrust of up to 2736N, continuous thrust of up to 684N The industrial demand for high-precision |
|
 |
LMC-EFC Low installation height, saving space The maximum speed of up to 5 m/s Maximum acceleration up 50 m/s2 Cross-sectional area 68.5mm X 35.7mm Instant thrust of up to 2736N, continuous thrust of up to 684N The industrial demand for high-precision |
|
 |

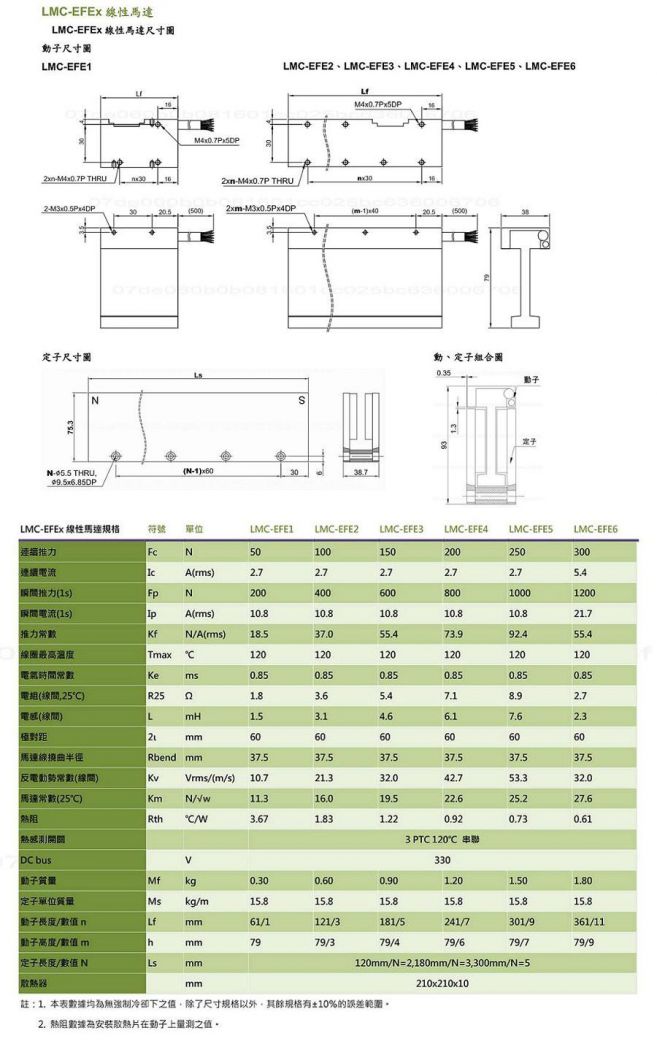

LMC-EFE Low installation height, saving space The maximum speed of up to 5 m/s Maximum acceleration up 50 m/s2 Cross-sectional area 93mm X 38.7mm Instant thrust of up to 2736N, continuous thrust of up to 684N The industrial demand for high-precision |
