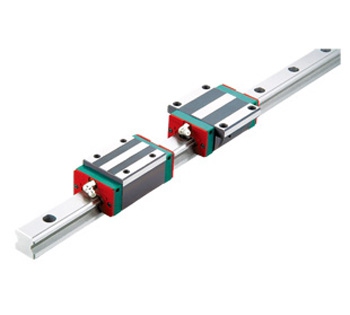

QH mute heavy-duty ball bearing linear slide

(1) low-noise design using synchronous coupling can collide metallic sound disappears equally spaced evenly arranged balls, balls and ball between sharp effectively reduce the intensity of high-frequency sound. The sum of the noise intensity is more effective with the old series is reduced by about 7.7 db at various speeds domains.



(2) self-lubricating design patents do not add oil interval sync connector on the middle portion of the design of oil storage space can be supplied at runtime ball needs lubrication, and in the direction of rotation through the Ministry of lubricant can be uniformly supplement in the oil space, continue evenly lubricated ball, so oil supplements can effectively reduce the frequency. Tested before leaving the factory to add high-performance lithium soap grease under 0.2 times the dynamic load rating, the sustainable use of over 2500 km without causing fatigue failure. So at the factory to add high-performance grease under normal use without the need for maintenance, to ensure years of its life.



(3) improve the smoothness of the movement does not have the traditional linear slide synchronizer of the link, starts running, ball load side will first movement, then push ball rotation direction within the Ministry and no-load side, causing a chain collision of back and forth, making friction changes dramatic ups and downs. The use SynchMotion TM technology Q1 Type Linear Slides Due synchronous couplings, all within the same cycle series ball together, so when the slide starts to move, all the ball almost simultaneously started, and there is no back and forth between the ball collision , while maintaining a certain inertia, the magnitude of changes can effectively reduce friction.



(4) high-speed design synchronization interval coupling design allows the Ministry of friction between the ball and the ball disappeared, and HIWIN patented design allows the coupling between the ball and the synchronous annular line contact can reduce the contact area between the two and thus effectively reduce friction, making SynchMotion TM silent type linear guideways with excellent high-speed performance.
