Solar silicon wafer (monocrystalline / polycrystalline) Cleaning Equipment

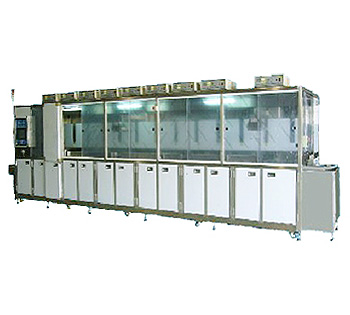

| 7 槽式蝕刻清洗機 |
.jpg) |
|
 流程 |
|
Feeding
(Place containing members) |
 |
Spray tank |
|
Spray tank |
|
Rinse ultrasound
+ Quick drainage |
|
Rinse ultrasound
+ Quick drainage |
|
Chemical degumming tank
(Acidic Pharmacy) |
 |
||||||||||
| Rinse and cutting |
 |
Rinse ultrasound |
|
Chemical degumming tank
(Acidic Pharmacy) |

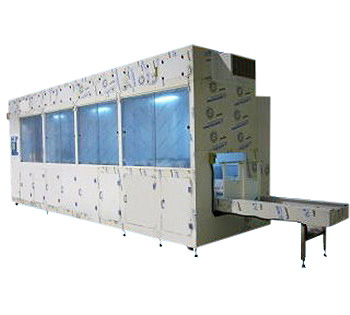

| 5 槽式脫膠預洗機 |
 |
 Uses crystal rods unglued after cutting pre-wash and use. Capacity of 40MW (15 ~ 25 min / Run). Application of solar wafers (monocrystalline / polycrystalline). Customized equipment Machine size ≒ 5,020 (W) x 3,230 (D) x 2,300 (H) mm. |
|
流程 |
|
Feeding
(Place containing members) |
|
Spray tank |
|
Spray tank |
|
Rinse ultrasound
+ Quick drainage |
|
Rinse ultrasound
+ Quick drainage |
|
Chemical degumming tank
(Acidic Pharmacy) |
|
|
||||||||||
| Rinse and cutting |
|
Rinse ultrasound |

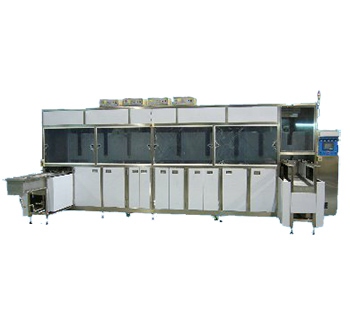

| 7 槽式脫膠預洗機 |
 |
After cutting the crystal rods with a pre-wash and unglued.
Capacity
50MW (15 ~ 25 min / Run)
Applications
Solar wafers (monocrystalline / polycrystalline).
Customized equipment Machine Size
≒ 6670(W) x 3,230(D) x 2,300(H)mm。
|
|
流程 |
|
Feeding
(Place containing members) |
|
Spray tank |
|
Spray tank |
|
Rinse ultrasound
+ Quick drainage |
|
Rinse ultrasound
+ Quick drainage |
|
Chemical degumming tank
(Acidic Pharmacy) |
|
|
||||||||||
| Rinse and cutting |
|
Rinse ultrasound |
|
Chemical degumming tank (Acidic Pharmacy) |

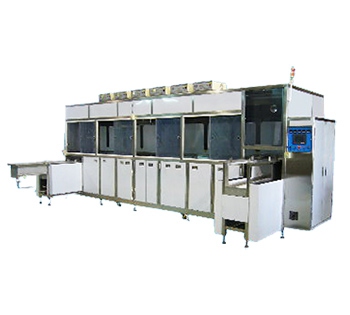

| 11槽式晶片清洗機 |
 |
B.Dedicated Carrier can be customized according to customer requirements, can be wafer thin due to the trend, can also complete solution for cleaning requirements.
Capacity
100 pcs / 5 mints inside.
Applications
Solar wafers (monocrystalline / polycrystalline).
Customized Products
Conditions to follow the production design customers.
Machine size ≒ 7,330 (W) x 2,380 (D) x2,300 (H) mm. |
|
流程 |
|
Feeding
(Put casette) |
|
Ultrasound
+ Water cleaning |
|
Ultrasound
+ Chemical cleaning |
|
Ultrasound
+ Chemical cleaning |
|
Ultrasound
+ Water cleaning |
|
Ultrasound
+ Chemical cleaning |
|
Ultrasound
+ Chemical cleaning |
|
|
||||||||||||
|
Cutting (Take casette) |
|
Hot air drying |
|
Slow pulled addition to water |
|
Ultrasound
+ Water cleaning |
|
Ultrasound
+ Water cleaning |
|
Ultrasound
+ Water cleaning |

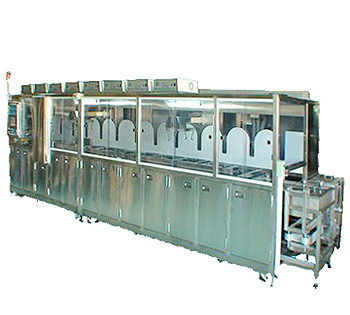

| 12槽式晶片請洗機 |
 |
A. Use row machine arrangement is completed (100pcs / 1Lot), will be 2 Lot into the washing machine cleaning, in order to reach the various capacity requirements.
B. Dedicated Carrier can be customized according to customer requirements, can be wafer thin due to the trend, can also complete solution for cleaning requirements.
C. Suitable for single-crystal diamond cutting + wafer after cleaning.
Capacity
200 pcs / 5 mints inside.
Customized Products
Conditions to follow the production design customers.
Machine size ≒ 11,660 (W) x 2,380 (D) x 2,300 (H) mm |
|
流程 |
|
Feeding
(Put casette) |
|
Ultrasound
+ Water cleaning |
|
Ultrasound
+ Chemical cleaning |
|
Ultrasound
+ Chemical cleaning |
|
Ultrasound
+ Water cleaning |
|
Ultrasound
+ Chemical cleaning |
|
Ultrasound
+ Chemical cleaning |
|
|
||||||||||||
|
Cutting
(Take casette) |
|
Hot air drying |
|
Hot air drying |
|
Slow pulled addition to water |
|
Ultrasound
+ Water cleaning |
|
Ultrasound
+ Water cleaning |
|
Ultrasound
+ Water cleaning |

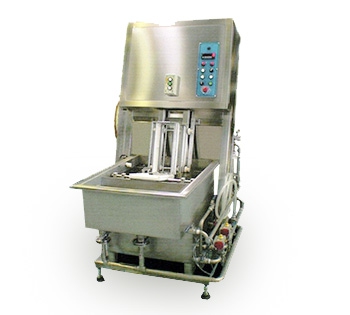

| 5"，6"太陽能晶片排片機 |
.jpg) |
♦The use of water will be discharged into the Cassette wafer or Carrier, can quickly complete the requirements for discharge of sheets and cleaning.
♦Avoid breakage rate generated artificial arrangement of the sheet
♦Cassette can use existing or custom piece of Carrier complete discharge requirements, without adding too much cost and meet production requirements.
The whole machine size
≒900W x 1‚500D x 2‚150Hmm(Depending on the number of chips per basket may be)
Pai piece rate ≒ 1pcs / 2 Sec. |

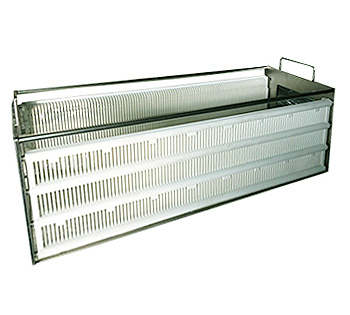

| 5"，6"太陽能晶片CARRIER |
 |
Features
A. 5 "and 6" wafers common type CARRIER.
B. PP + glass fiber + SUS rod injection molding side, high durability.
C.sticky film, the cleaning effect is good.
|
