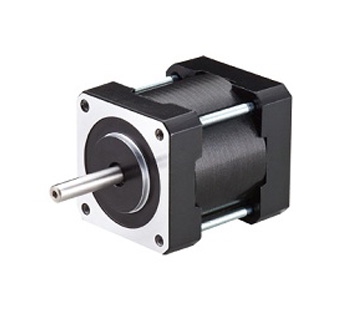

Two-phase stepper motor
Stepping
Pulse Mode Control
Stepping mode operation
Step angle of 1.8 degrees / 2-phase stepper motor
Brushless design
Application:
- Semiconductor Equipment
- Semiconductor Equipment
- Automated conveyance
- FPD Equipment
- PCB equipment
- Machine tools
- EDM Equipment
 |
 ST40 With retention In open-loop mode to complete high-precision positioning Angle control, speed control is simple Start, stop response is superior High torque, high response There will be no cumulative error angle stop High resolution, high accuracy positioning Because the motor structure is simple, it is easy to maintain Step Angle 1.8 ∘ 2-phase stepper motor With the same period of the input pulse to the way the operation in steps |
 |
ST55 With retention In open-loop mode to complete high-precision positioning Angle control, speed control is simple Start, stop response is superior High torque, high response There will be no cumulative error angle stop High resolution, high accuracy positioning Because the motor structure is simple, it is easy to maintain Step Angle 1.8 ∘ 2-phase stepper motor With the same period of the input pulse to the way the operation in steps |
 |
STD-24A Supports two-phase six-wire stepper motor Support Quadrature pulse wave format Mining unipolar constant current drive mode Positive and negative limit control can be applied Micro-stepping drive capability(1~500Segmentation) Motor excitation function with solution Continuous Output Current 0.2A ~ 2A Maximum response frequency150000HZ Support Pulse / Direction (1P) pulse wave format Support CW / CCW (2P) pulse wave format |
